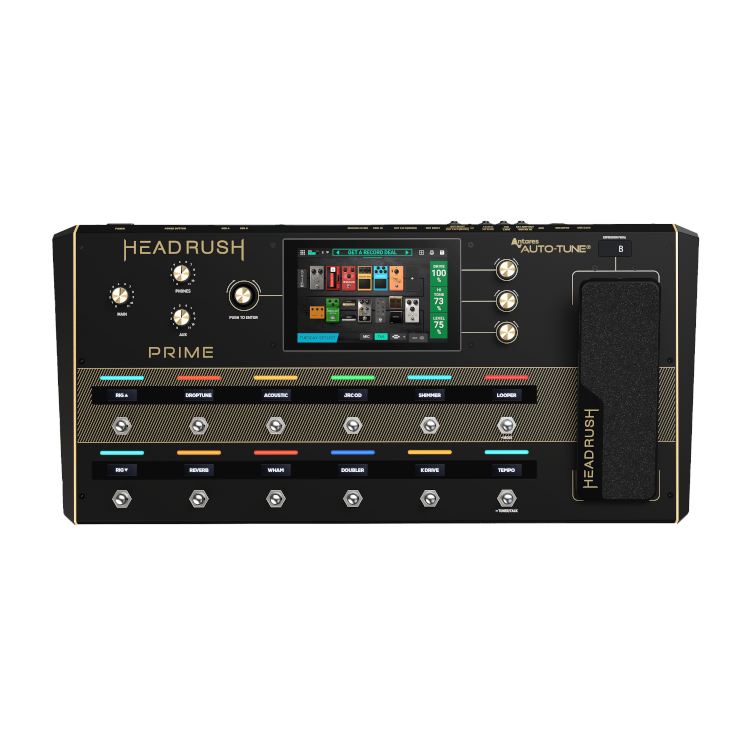

Headrush Prime

Description

Footswitches  : (12) footswitches with color LEDs & OLED displays
Pedals : (1) expression pedal
Knobs : (1) 300° main volume knob
(1) 300° phones volume knob
(1) 300° auxiliary volume knob
(1) 360° navigation/data encoder
(3) 360° parameter encoders
Display : (1) full-color LED-backlit display with touch interface
Connectors : 1/4” (6.35 mm) TS input (guitar)
XLR / 1/4″ (6.35 mm) input (microphone)
1/4” (6.35 mm) TRS input (expression pedal)
1/4” (6.35 mm) TS input (expression pedal toe switch)
1/8” (3.5 mm) stereo input (auxiliary device)
1/4” (6.35 mm) TRS output (external amp footswitch)
1/4” (6.35 mm) stereo pair outputs
XLR stereo pair outputs
1/8” (3.5 mm) stereo headphone output
1/4” (6.35 mm) TRS input (FX send)
1/4” (6.35 mm) TRS output (FX return)
(1) 5-pin MIDI input
(1) 5-pin MIDI output
USB Type-A port
USB Type-B port
Power Connection IEC
Input Voltage 100–240 V, 50/60 Hz, 1.2 A
Dimensions : (width x depth x height, pedal fully forward)
25.68” x 12.12” x 3.24”
65.23 x 30.78 x 8.23 cm
Weight 16.53 lbs. 7.50 kg
