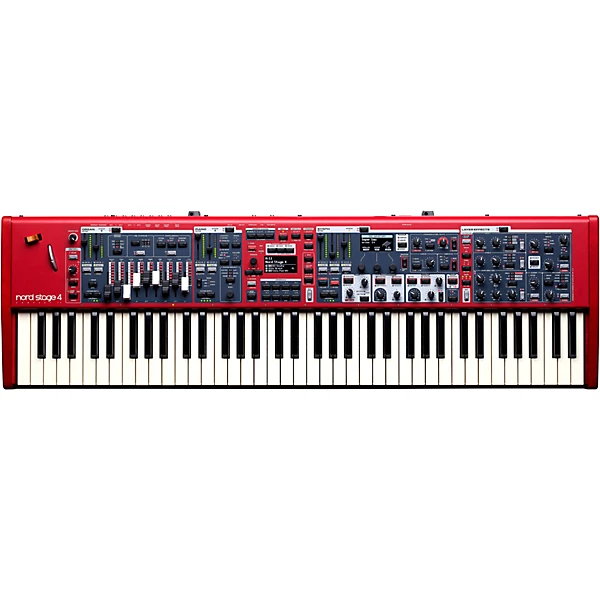

Nord Stage 4 Compact 73

Rp95.100.000

Description

Nord Stage 4 Compact: 73-key Triple Sensor Semi Weighted Waterfall keyboard with Aftertouch. Range: E-E

Master Level Control

Wooden Pitch Stick

Modulation Wheel

512 Programs – 8 Banks with 8 Pages each. Each Page has 8 Program locations

Preset Library with Organ, Piano and Synth Presets including effects. 2×64 Organ Preset locations, 2×64 Piano Preset locations, 8×64 Synth Preset locations.

8 Live Programs

2 Individual Layer Scene Setups

3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch

Stereo and Mono output routing options

Programmable Transpose +/- 6 semitones

Master Clock functionality with manual, external and tap-tempo rate control

Internal and MIDI clock source

MIDI over USB functionality

Level control

Aftertouch

Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones

3 Split Point width (crossfade) options: Lrg, Sml or Off

4 Assignable Audio Outputs – ¼”, 6,35 mm jacks, unbalanced

Stereo Headphone output – ¼”, 6,35 mm stereo jack

Monitor input – 1/8″, 3,5 mm stereo jack

Sustain Pedal – ¼”, 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals

MIDI In – 5 pin DIN connectors

MIDI Out – 5 pin DIN connectors

USB – type B connector for USB MIDI, Software Update and Sound Transfer

Power Cord with IEC C14 connectorTriple Pedal – 5 pin DIN connector. Compatible with Nord Triple Pedal 2

Organ Swell Pedal – ¼”, 6,35 mm TRS stereo jack.

Foot Switch input – ¼”, 6,35 mm jack.
Use a momentary two-button pedal or a single switch type pedal.

Control Pedal – ¼”, 6,35 mm TRS stereo jack.

Rotor Pedal – ¼”, 6,35 mm jack.

Use a momentary pedal or a switch type pedal.
