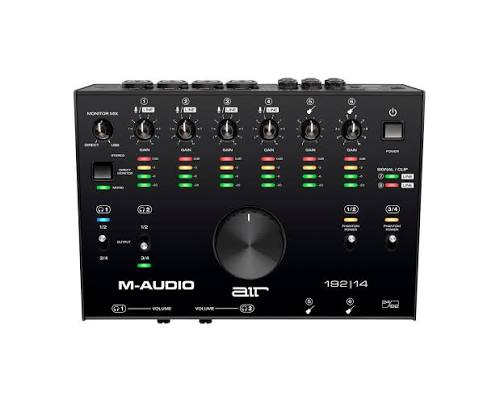

M-AUDIO AIR 192|14

Description

• Tipe: USB Audio Interface 8-In / 4-Out
• Resolusi Audio: 24-bit / 192 kHz
• Koneksi: USB-C (USB 2.0)
• Input:
  • 4 × XLR / 6.35 mm TRS Combo (Mic/Line)
  • 2 × 6.35 mm TS Hi-Z Instrument Input
  • 2 × 6.35 mm TRS Line Input
• Output:
  • 2 × 6.35 mm TRS Balanced Main Outputs
  • 2 × 6.35 mm TRS Line Outputs (Auxiliary)
  • 2 × 6.35 mm Stereo Headphone Outputs (independent volume & source control)
• MIDI: 3.5 mm TRS MIDI In & MIDI Out (adapter DIN 5-pin disertakan)
• Preamplifier: 4 × Crystal™ Low-Noise Mic Preamps
• Phantom Power: +48V (dapat diaktifkan per pasangan channel 1–2 dan 3–4)
• Gain:
  • Mic: 62 dB
  • Line: 61 dB
  • Instrument: 59 dB
• Latency: Hingga sekitar 2.59 ms (round-trip, tergantung buffer & komputer)
• Monitoring: Zero-Latency Direct Monitoring (USB/Direct Mix Knob)
• Metering: Multi-segment LED VU Meter
• Dynamic Range:
  • Mic/Line Input: 113 dB (A-weighted)
  • Instrument Input: 110 dB
  • Main Output: 112 dB
  • Line Output: 113 dB
  • Headphone Output: 111 dB
• Headphone Output Power: 160 mW @ 32 Ω
• Headphone Impedance: Mendukung 32–600 Ω
• Power: Adaptor AC 12V / 2A (disertakan)
• Dimensi: 25.9 × 18.6 × 9.1 cm
• Berat: 1.8 kg
• Kompatibilitas: Windows & macOS
• Software Bundle: Ableton Live Lite, MPC Beats, AIR Creative FX Collection, AIR Virtual Instruments, Revalver, Touch Loops, serta plugin tambahan untuk recording dan mixing.
